Hardware
| CPU |
MTK P60（ARM A73 2.0GHz Octa-core） |
| GPU |
Mali-g72mp3 |
| RAM |
4GB |
| Internal Memory |
32GB |
| External Memory |
Micro SD card ( T-FLASH card), max 128GB |
| Main Camera |
13.0MP(AF) with flash led |
| Sub Camera |
1.0MP |
| Battery |
7200mAh（Replaceable battery） |
| Display |
3.1inch HD display 720*720 |
| Touch Panel |
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
IO/Sensor/Navigation
| SIM Card |
Micro SIM |
| TF Card |
Micro SD card ( T-FLASH card) ;max 128GB |
| Data interface |
Magnetic interface（Pogo pin）USB&data |
| RFID module |
134K animal tags |
| Gravity sensor |
support |
| Motion sensor |
support |
| Direction Sensor |
support |
| Magnetic Field Sensor |
support |
| Gyro sensor |
support |
| Rotation Vector |
support |
| Light-sensor |
support |
| Acceleration sensor |
support |
| Charger |
5.0V 2A-10W |
| Navigation |
Integrated GPS + GLONASS + Beidou positioning, support APGS |
Appearance
| Size |
267*100*38（L×W×H） |
| Weight |
447g |
| Color & Material |
Black + grey(Metal &ABS) |
Communications & Networking
| Phone Call |
GSM /WCDMA/CDMA 1X/VoLTE |
| 2G |
GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band |
GSM（B2/3/5/8） |
| 3G |
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO |
| 3G Band |
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G |
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band |
TD-LTE（B38/39/40/41）；FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI |
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth |
4.2 Low Energy (LE) |
Industrial & Reliability Design
| Shake-proof |
1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK |
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof |
Class 5 ( IEC 60529 ) |
| Dustproof |
Class 6 ( IEC 60529 ) |
| Reliability |
MTBF>5000h；MTTR<0.5h |
| Operating temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 80°C |
| RH |
5% to 95% (No condensation) |
| Operating Altitude |
Max: 4,500 m（15,000 feet） |
Certification/OS/Software
| Language |
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish,
Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc |
| OS |
Andriod 10.0 |
Package/Warranty terms/OEM
| Warranty |
24 months |
| OEM/ODM |
Support |
| Package |
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box |

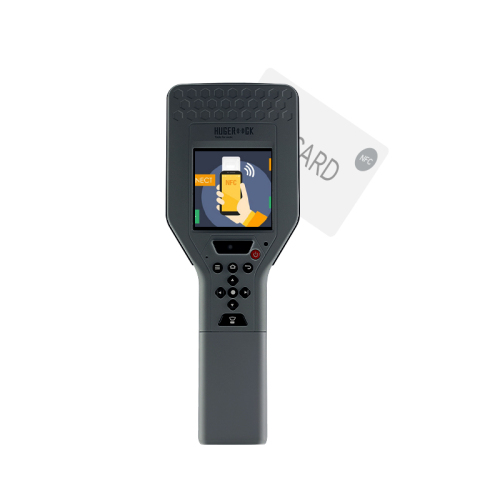

HF RFID/NFC
| Frequency |
13.56MHz |
| Protocol standard |
ISO14443A/B,ISO15693，NFC |
| Label standard |
M1(S50、S70)、CPU、NFC |
| Read-write distance |
2-5cm |
134K LF RFID （support Animal tags）
| Operation Frequency |
134 kHz |
| support agreement |
ISO11784/5 |
| Read distance |
>30cm |
| Working mode |
FDX-B/HDX |
Data Collection
| Scanning engine |
Newland N1 |
| 1D |
UPC/EAN,Code128，Code39，Code93，Code11，Interleaved 2 of 5，Discrete 2 of 5，Chinese 2 of 5，
Codabar，MSI，RSS,ETC |
| 2D |
Code39，Code128，PDF417，MicroPDF417，DataMatrix，Composite，RSS,TLC-39，QR code，
Micro QR code，Aztec，MaxiCode，Postal Code；US PostNet，US Planet，UK Postal，Australian Postal，Japan Postal,etc. |
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q1: Does the handheld can read QR code and common 1d bar codes?
A1: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the least order quantity (MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
